저렴한 열 성형 포장 기계 식품 진공 실러 포장 기계

저렴한 열 성형 포장 기계 식품 진공 실러 포장 기계

일반적으로 다른 재료로 만들어진 두 개의 필름 코일(포밍/언더 필름, 씰링/상부 필름)을 사용하여 기계 내에서 패키지를 형성하는 것이 특징인 수평 자동 포장기. 사용되는 재료에 따라 패키지는 유연하거나 단단할 수 있습니다. 이 유형의 기계는 식품 및 비식품 시장 모두를 대상으로 합니다.
문의 보내기

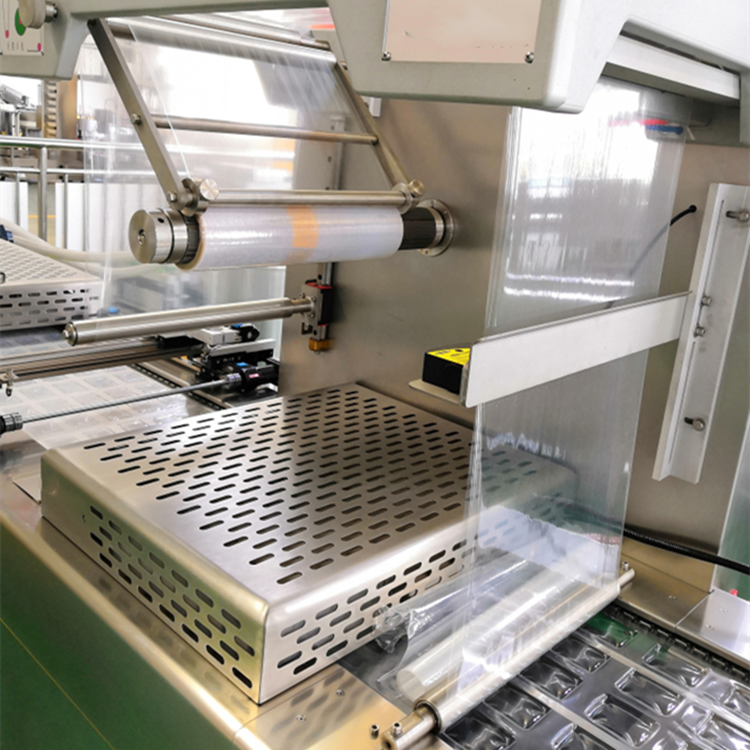

열 성형 포장 기계는 롤 스톡 포장 기계라고도합니다. 스트레치 필름 진공 포장기 또는 간단히 말해서 열 성형기. 일반적으로 서로 다른 재질로 만들어진 두 개의 필름 코일(포밍/언더 필름, 씰링/상부 필름)을 사용하여 기계 내에서 패키지를 형성하는 것을 특징으로 하는 수평형 자동 포장기. 사용된 재료에 따라 패키지는 유연하거나 단단할 수 있습니다. 이 유형의 기계는 식품 및 비식품 시장 모두를 대상으로 합니다.
사양
모델
DZDL-520
DZDL-420
DZDL-320
상부 필름의 폭
495mm
395mm
295mm
하부 필름의 폭
522mm
422mm
322mm
진공
200Pa 이하
200Pa 이하
200Pa 이하
압축 공기
0.6MPa 이상
0.6MPa 이상
0.6MPa 이상
냉각수
0.15MPa 이상
0.15MPa 이상
0.15MPa 이상
380V/50Hz
380V/50Hz
380V/50Hz
용량
12KW
10KW
7KW

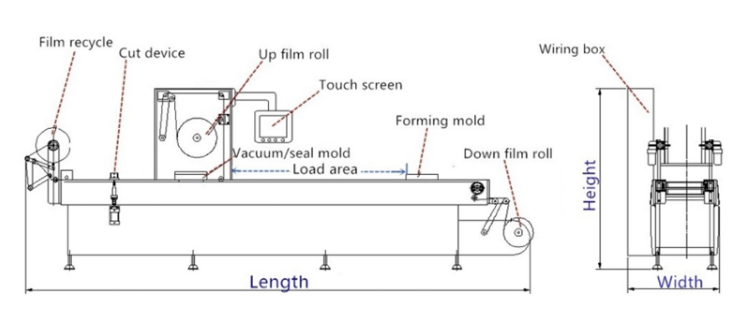

치수
750010001750mm
55009001750mm
45008001750mm
무게
2200kg
1800kg
1200kg
이 기계의 특징:
1.10.4 inch color simulation touch screen. Push-pull design makes the operation more convenient. 2. It can be equipped with brand-name servo control coding device according to user's product requirements. 3. Up and down separate molds, with high strength and more reasonable design. Loading and unloading is convenient and quick. 4. The wide-open chain film clamp guarantees the clamping force, accurate transmission and long service life. 5. It adopts independent cross-cutting, and can move and adjust single knife. Computer centralized control, single-pole on and off can be selected on the touch screen. 6. The vacuum pump has the characteristics of fast pumping speed, high vacuum degree and long service life. 7. Servo high speed, Micro Motion film walking design. 8. Highly sensitive three-color standard photoelectric sensor, highly positioning the position of each pattern on the product. Beautify product appearance and improve product quality. 9. Temperature control can set the temperature on the touch screen according to product requirements. 10. The packaging frame body adopts one-time extrusion molding aluminum alloy type, which has the characteristics of high strength and not easy to deform. 11. The vacuum solenoid valve has beautiful appearance, low air consumption, low noise, and durability, which improves the performance and service life of the equipment. 12. The waste material recycling adopts an adjustable torque motor system, which makes the scrap recycling cleaner, convenient and noise-free. 13. Both the upper and lower films adopt inductive automatic braking and tensioning systems, and are equipped with horizontal adjustment handles to adjust the running direction of the packaging film at any time.
